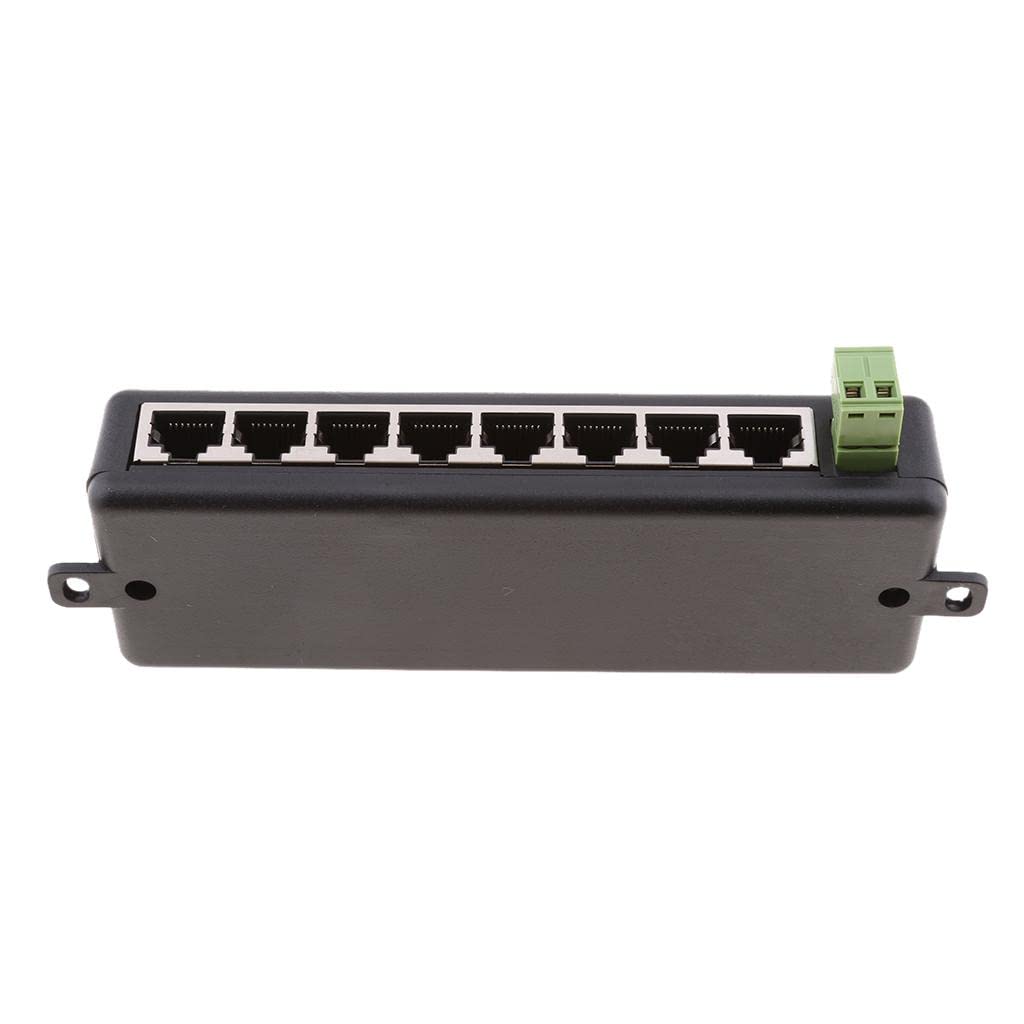

8 PoE Ports Injector Power Over...

Price: ₹2,704 - ₹1,591.00
(as of Mar 06, 2026 03:23:04 UTC – Details)


Description:
POE port = 4 5-pin positive pole， 7 8-pin negative pole， 1 2 3 6-pin data. POE Port: Connect Bridge AP CPE device WAN interface (use with POE separation line)
LAN port = 1 2 3 6-pin data. LAN port: Connect to a router Switch or directly connect to the host computer network interface.
DC socket: outside -5.5mm * within +2.1 mm / outside -0.22 inch * within + 0.08 inch. Product Operating Voltage 12-48V
Simple network setup on top of plug-and-play connectivity with web-based user interface.
Used for wireless AP,Security CCTV IP camera,IP telephone,wireless bridge,IP print server etc.


Specification:
Size:170 * 60 * 30 mm/ 6.69 * 2.36 * 1.18 inch
Package Includes:
Package Includes:1 Piece Poe Power Separator
Note:
Note:
Product Operating Voltage 12-48V
The green terminal and DC jack power supply voltage are connected.
Due to manual measurements, the measurement result may have a difference of 10mm.






Description :POE port = 4 5-pin positive pole， 7 8-pin negative pole， 1 2 3 6-pin data. POE Port: Connect Bridge AP CPE device WAN interface (use with POE separation line)
LAN port = 1 2 3 6-pin data. LAN port: Connect to a router Switch or directly connect to the host computer network interface.
DC socket: outside -5.5mm * within +2.1 mm / outside -0.22 inch * within + 0.08 inch. Product Operating Voltage 12-48V
Simple network setup on top of plug-and-play connectivity with web-based user interface.
Used for wireless AP,Security CCTV IP camera,IP telephone,wireless bridge,IP print server etc.
